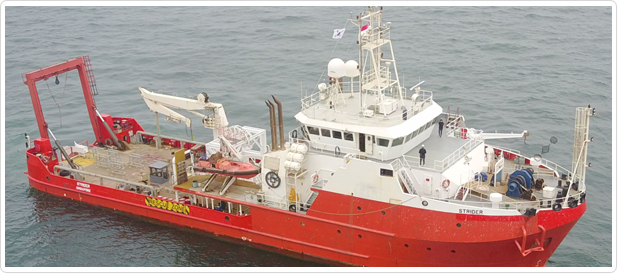

> Vessel List > STRIDER |
 |
|
|
|
|
 |
|
 |
| PARTICULARS |
| Vessel Type |
DP1, SPS, 4 Point Mooring, Multi Purpose |
| Call sign |
9V5440 |
| Official No. |
401024 |
IMO No |
9369289 |
| Port of Registry |
Singapore |
Year Built |
2006 |
| Classification |
ABS 1 Hull, Mach, Aut/UMS, DYNAPOS, AM/AT, E, Supply Vessel, Special Pupose Ship |
| DETAILS |
| Length Overall |
54m |
Breadth |
14m |
| GRT-NRT |
1271/381 |
Depth Moulded |
4.8m |
| Maximum draft |
3.8m |
Clear deck Space |
235m² |
| Max Speed |
12 kts @ 85% MCR |
Economical speed |
9 kts |
| Sewage Plant |
MARPOL compliant |
Rudders |
Twin Becker |
| Joystick |
Yes |
Flow Meter |
Not fitted |
| Bollard Pull |
30t |
|
|
| CAPACITY |
| Fuel Oil |
320m³ |
Potable Water |
210m³ |
| Sewage |
8.3m³ |
Grey Water |
18.3m³ |
| MACHINERY |
| Main Engines |
Caterpillar 3512B, 2 x 1350kW (1810) BHP @ 1600rpm |
| Generators |
2 x Caterpillar 3406 260kW (275kVA) @ 1800rpm (440/60Hz),
1 x Caterpillar 3406C dedicated survey/ROV 320kW (400/60Hz) @ 1800rpm (440/3/60Hz) |
| Emergency Generators |
2 x LSA 49.1 M7 Shaft Alternator @ 600kW |
| Bow Thruster |
Rolls-Royce T9212 1 x 450kW 6.6t, Transverse tunnel |
| tern Thru ster |
Rolls-Royce T9213 300kW, 4.5t |
| Propulsion |
2 x CPP fixed nozzles, 2 x Berg CPP 580 Hx/4 with Kort Nozzles |
| ACCOMMODATION |
| Berths |
2x1, 6x2, 7x4 |
Total |
42 |
| Hospital |
1x1 |
|
|
| DECK EQUIPMENT |
| Towing Winch |
|
| Type |
Plimsol SWL electro hydraulic |
Pull |
40t, 35m/ton @ 5m/min |
| Brake Holding |
80m/tons |
Wire Capacity |
500m x 32mm |
| Tugger Winch |
|
| Number & Capacity |
2 x 5t |
Wire Capacity |
15m/minute, holding power 7t |
| Other Deck Equipment |
|
| Stern Roller |
1000mm dia x 2200mm, 50T SWL |
| A Frame |
Available |
A Frame Seating |
Fitted |
| Crane |
Hydramarine knuckle boom marinised crane, SWL 15t @ 33m,
360 degree rotation, variable speed winch 7.5t |
| Deck Voltage & Sockets |
10 x 415V x 32 AMP |
Water Maker |
N/A |
| LIFESAVING |
| Liferafts |
6 x 25 man SOLAS |
Lifejackets |
84 |
| FRC/Rescue Boat/Davit |
1 x 7m, 15 persons, Weedo 700 FRB 220HP, Macgregor 3.8T davit |
| Lifebuoys |
8 |
Immersion Suits |
6 |
| SPECIALIST |
| DP Class |
DP Class 1, Taut Wire |
| HPR |
Gate valve fitted |
DGPS |
2 x DGPS Trimble |
| Transducer Pole |
Gate valve fitted |
Transducer Flange |
2 |
| Mooring |
Four point mooring system, 4 x 1.5t Delta, flipper anchors |
| Moonpool |
Fitted |
| A Frame |
20t SWL, Articulated A Frame, fitted on request |
PIC: Mr. Sean J. Kim(+82 10 8004 1583, sean@gpsdata.net)
Details are given in good faith and are believed to be correct but not guaranteed and the spec can be changed without notice. |
|
|
|
 |
|
